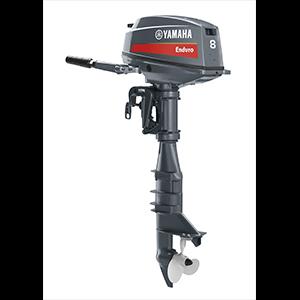

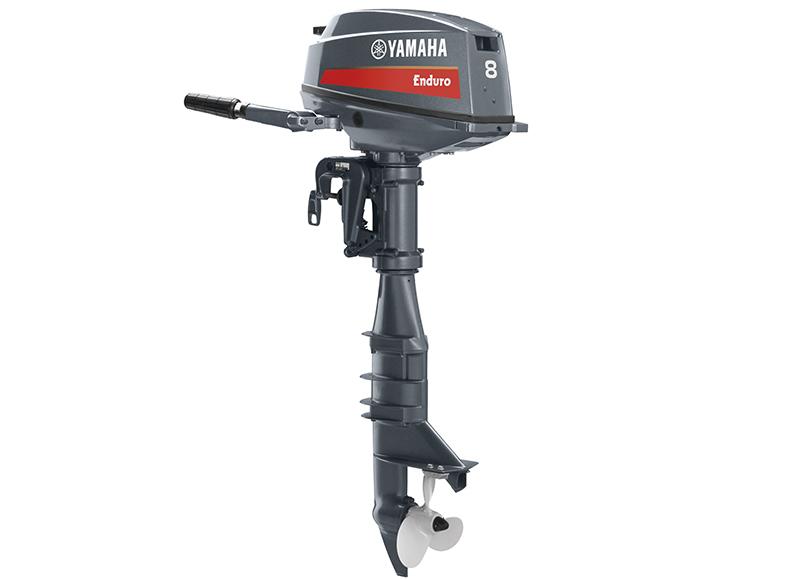

E8DMHL
5.9 kW (8 ps)
HKD $14,980

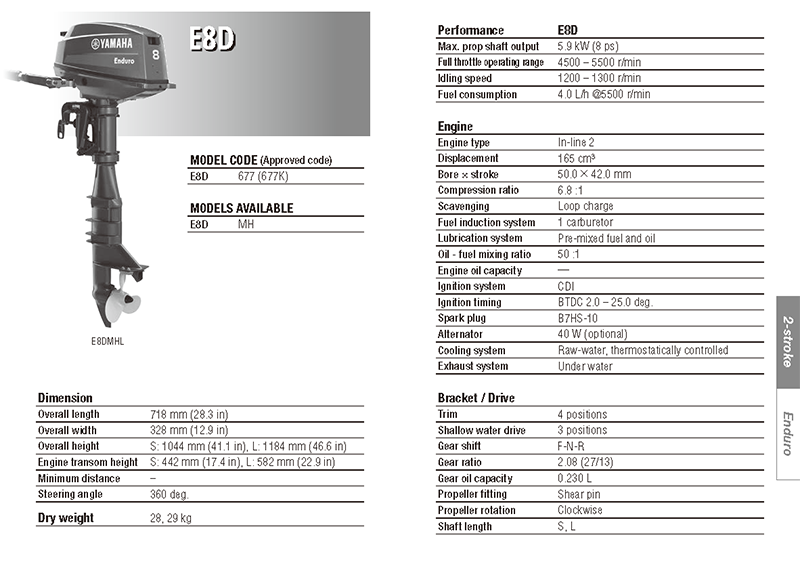

Performance
Max.prop Shaft Output5.9 kW (8 ps)
Full Throttle Operating Range4500 – 5500 r/min
Idling Speed1200 – 1300 r/min
Fuel Consumption4.0 L/h @5500 r/min

Engine
Engine TypeIn-line 2
Displacement165 cm³
Bore X Stroke50.0 × 42.0 mm
Compression Ratio6.8 :1
Starting EnrichmentManual choke
ScavengingLoop charge
Fuel Induction System1 carburetor
Oil fuel mixing ratio50 :1
Lubrication SystemPre-mixed fuel and oil
Ignition SystemCDI
Ignition TimingBTDC 2.0 – 25.0 deg.
Spark PlugB7HS-10
Alternator40 W (optional)
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemUnder water

Bracket / Drive
Trim4 positions
Shallow Water Drive3 positions
Steering Angle360 deg
Gear ShiftF-N-R
Gear Ratio2.08 (27/13)
Gear Oil Capacity0.230 L
Propeller FittingShear pin
Propeller RotationClockwise
Engine Transom Height 582 mm (22.9 in)
