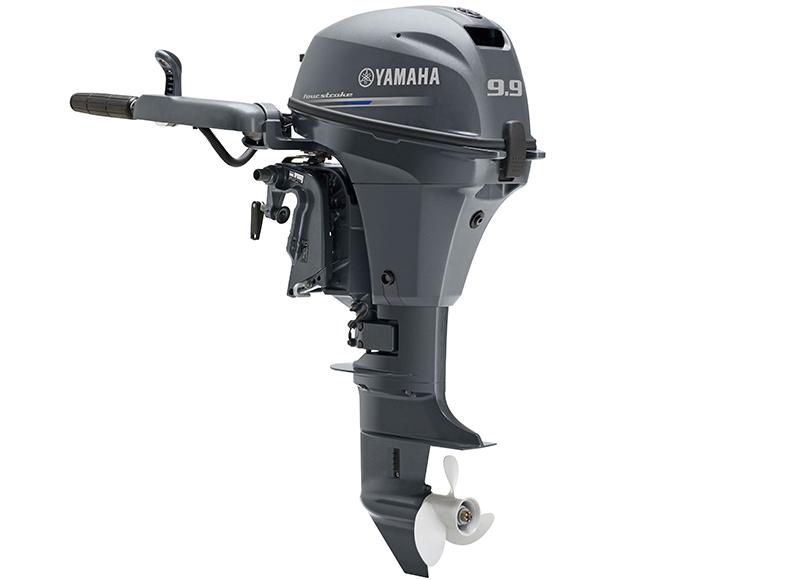

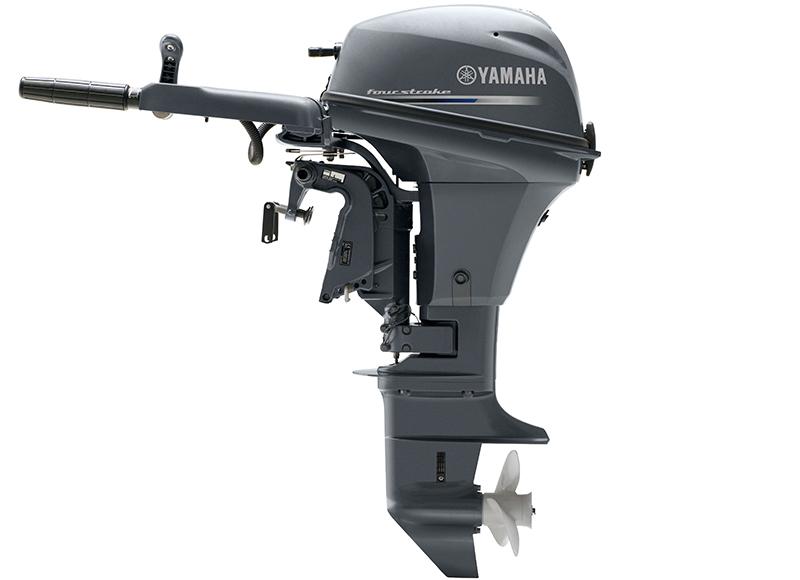

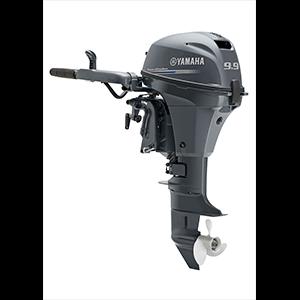

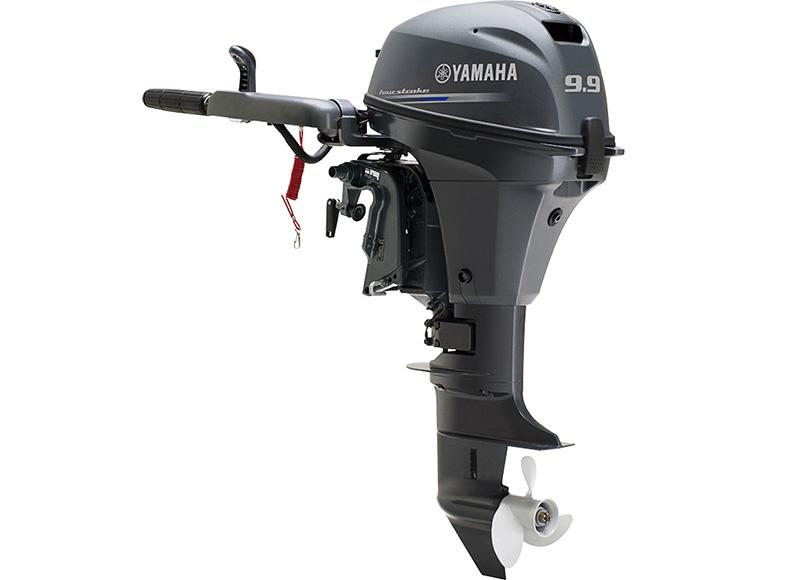

F9.9JMHS
7.3 kW (9.9 ps)
7.3 kW (9.9 ps)
HKD $27,200

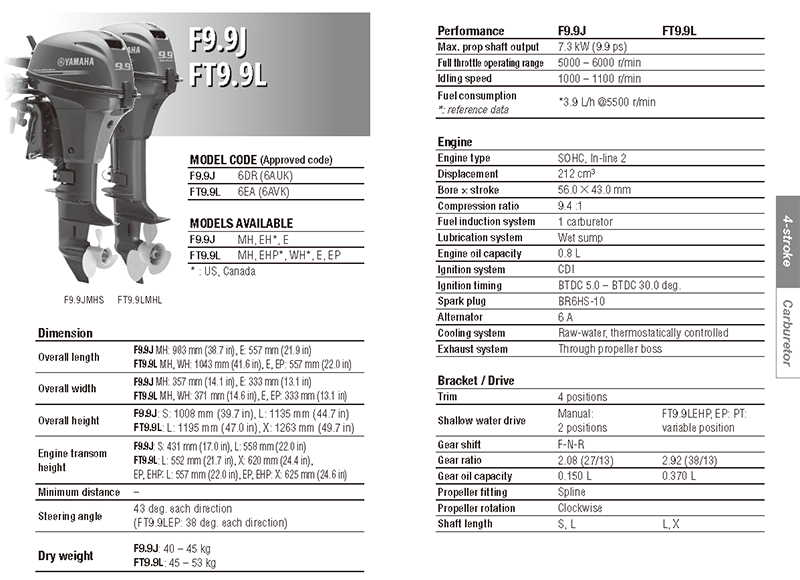

| Performance | |
| Max.prop Shaft Output | 7.3 kW (9.9 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 1000 – 1100 r/min |
| Fuel Consumption | 3.9 L/h @5500 r/min |
| Engine | |
| Engine Type | SOHC, In-line 2 |
| Displacement | 212 cm³ |
| Bore X Stroke | 56.0× 43.0 mm |
| Compression Ratio | 9.4 :1 |
| Starting Enrichment | Manual choke |
| Fuel Induction System | 1 carburetor |
| Lubrication System | Wet sump |
| Engine Oil Capacity | 0.8 L |
| Ignition System | CDI |
| Ignition Timing | BTDC 5.0 – BTDC 30.0 deg. |
| Spark Plug | BR6HS-10 |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | 4 positions |
| Shallow Water Drive | Manual: 2 positions |
| Steering Angle | 43 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 (27/13) |
| Gear Oil Capacity | 0.150 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 431 mm (17.0 inch) |
