F15CES
11.0 kW (15 ps)
11.0 kW (15 ps)
HKD $29,500

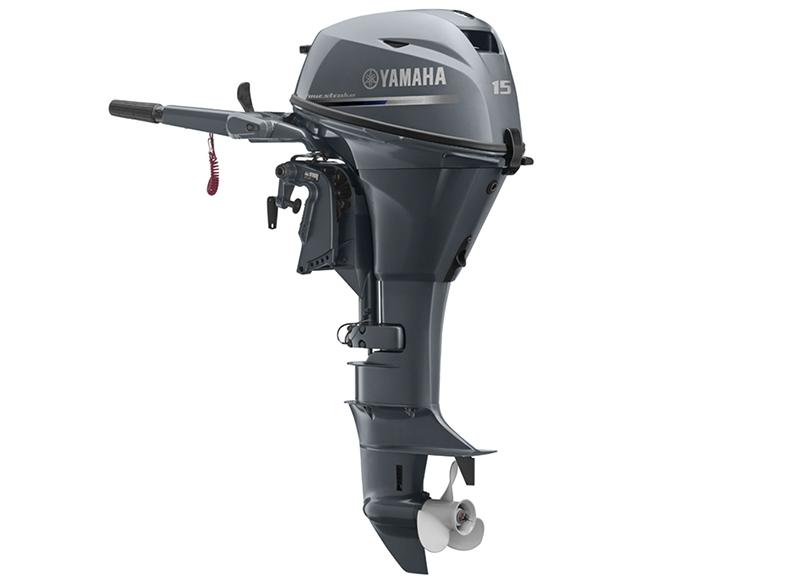

This picture is for reference only and the real object should be considered as final.

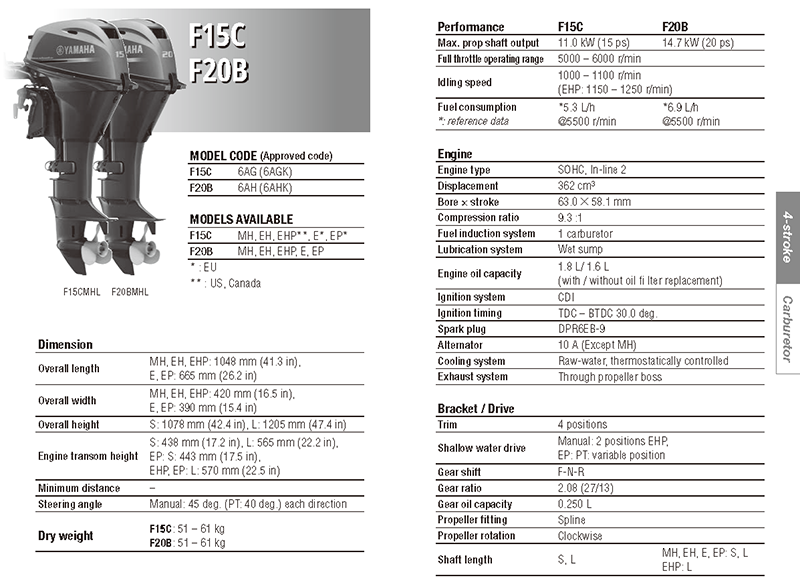

| Performance | |
| Max.prop Shaft Output | 11.0 kW (15 ps) |
| Full Throttle Operating Range | 5000 – 6000 r/min |
| Idling Speed | 1000 – 1100 r/min |
| Fuel Consumption | 5.3 L/h @5500 r/min |
| Engine | |
| Engine Type | SOHC, In-line 2 |
| Displacement | 362 cm³ |
| Bore X Stroke | 63.0× 58.1 mm |
| Compression Ratio | 9.3 :1 |
| Starting Enrichment | Prime start |
| Fuel Induction System | 1 carburetor |
| Lubrication System | Wet sump |
| Engine Oil Capacity | 1.8 L/ 1.6 L (with / without oil filter replacement) |
| Ignition System | CDI |
| Ignition Timing | TDC – BTDC 30.0 deg. |
| Spark Plug | DPR6EB-9 |
| Alternator | 10 A |
| Cooling System | Raw-water, thermostatically controlled |
| Exhaust System | Through propeller boss |
| Bracket / Drive | |
| Trim | 4 positions |
| Shallow Water Drive | Manual: 2 positions |
| Steering Angle | Manual: 45 deg. each direction |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 (27/13) |
| Gear Oil Capacity | 0.250 L |
| Propeller Fitting | Spline |
| Propeller Rotation | Clockwise |
| Engine Transom Height | 438 mm (17.2 inch) |
