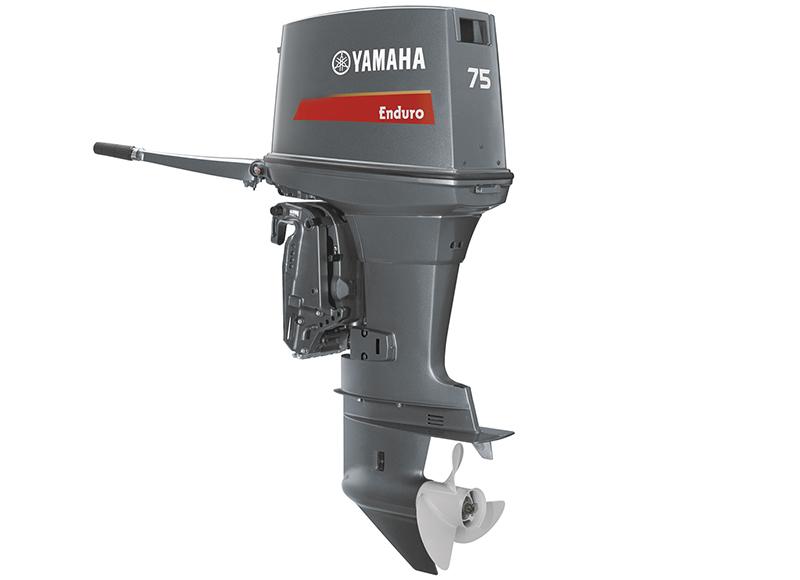

E75BMHDL
55.2 kW (75 ps)
HKD $47,300



Performance
Max.prop Shaft Output55.2 kW (75 ps)
Full Throttle Operating Range4500 – 5500 r/min
Idling Speed750 – 850 r/min
Fuel Consumption34.0 L/h @5500 r/min

Engine
Engine TypeIn-line 3
Displacement1140 cm³
Bore X Stroke82.0× 72.0 mm
Compression Ratio4.5 :1
Starting EnrichmentManual choke
ScavengingLoop charge
Fuel Induction System3 carburetors
Oil fuel mixing ratio50 :1
Lubrication SystemPre-mixed fuel and oil
Ignition SystemCDI
Ignition TimingATDC 2.0 – BTDC 22.0 deg.
Spark PlugB8HS-10
Alternator10 A
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemThrough propeller boss

Bracket / Drive
Trim5 positions
Steering Angle30 deg. each direction
Gear ShiftF-N-R
Gear Ratio2.00 (26/13)
Gear Oil Capacity0.610 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height521mm (20.5in)
