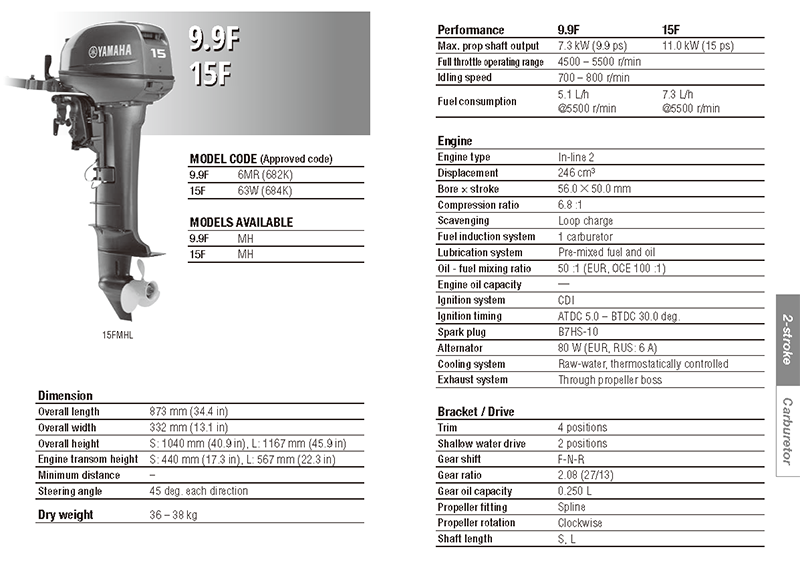

Performance | |
Max.prop Shaft Output | 11.0 kW (15 ps) |
Full Throttle Operating Range | 4500 – 5500 r/min |
Idling Speed | 700 – 800 r/min |
Fuel Consumption | 7.3 L/h @5500 r/min |
Engine | |
Engine Type | In-line 2 |
Displacement | 246 cm³ |
Bore X Stroke | 56.0 × 50.0 mm |
Compression Ratio | 6.8 :1 |
Starting Enrichment | Manual choke |
Scavenging | Loop charge |
Fuel Induction System | 1 carburetor |
Oil fuel mixing ratio | 50 :1 (EUR, OCE 100 :1) |
Lubrication System | Pre-mixed fuel and oil |
Ignition System | CDI |
Ignition Timing | ATDC 5.0 – BTDC 30.0 deg. |
Spark Plug | B7HS-10 |
Alternator | 80 W (EUR, RUS: 6 A) |
Cooling System | Raw-water, thermostatically controlled |
Exhaust System | Through propeller boss |
Bracket / Drive | |
Trim | 4 positions |
Shallow Water Drive | 2 positions |
Steering Angle | 45 deg. each direction |
Gear Shift | F-N-R |
Gear Ratio | 2.08 (27/13) |
Gear Oil Capacity | 0.250 L |
Propeller Fitting | Spline |
Propeller Rotation | Clockwise |
Engine Transom Height | 567 mm (22.3 in) |
HKD $16,800
