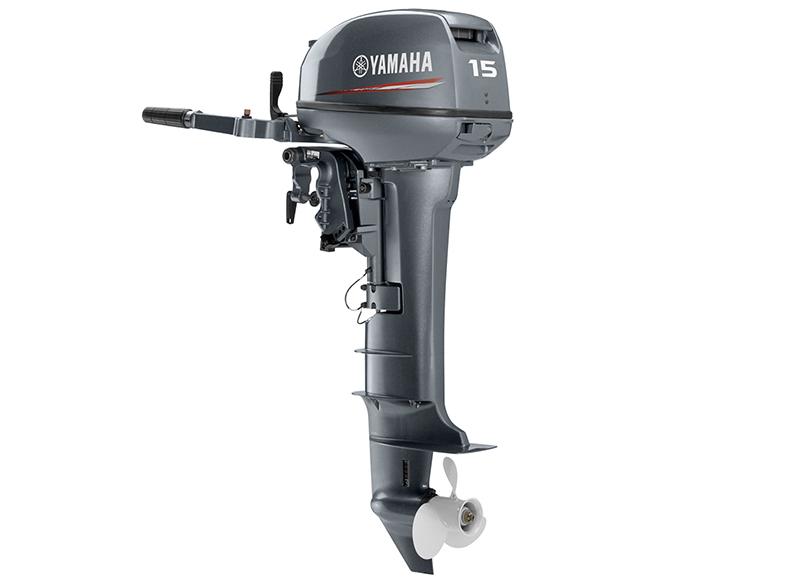

15FMHS
11.0 kW (15 ps)
HKD $16,500

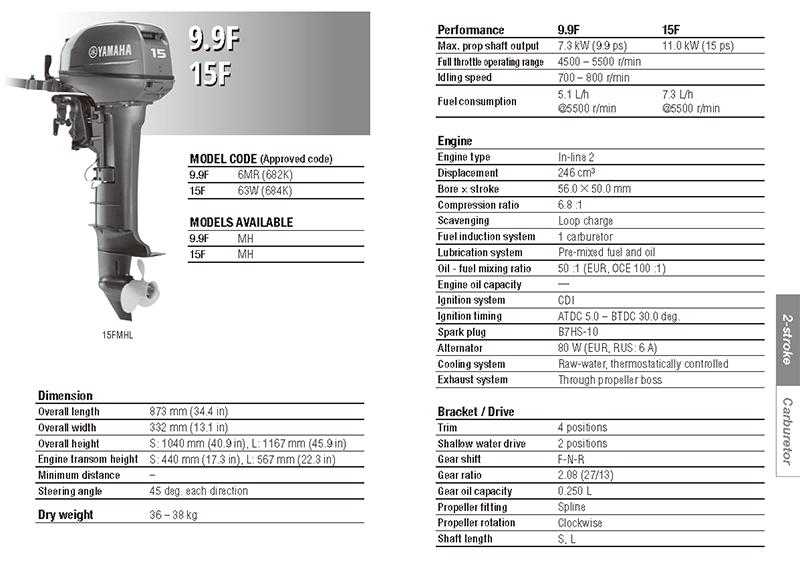

Performance
Max.prop Shaft Output11.0 kW (15 ps)
Full Throttle Operating Range4500 – 5500 r/min
Idling Speed700 – 800 r/min
Fuel Consumption7.3 L/h @5500 r/min

Engine
Engine TypeIn-line 2
Displacement246 cm³
Bore X Stroke56.0 × 50.0 mm
Compression Ratio6.8 :1
Starting EnrichmentManual choke
ScavengingLoop charge
Fuel Induction System1 carburetor
Oil fuel mixing ratio50 :1 (EUR, OCE 100 :1)
Lubrication SystemPre-mixed fuel and oil
Ignition SystemCDI
Ignition TimingATDC 5.0 – BTDC 30.0 deg.
Spark PlugB7HS-10
Alternator80 W (EUR, RUS: 6 A)
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemThrough propeller boss

Bracket / Drive
Trim4 positions
Shallow Water Drive2 positions
Steering Angle45 deg. each direction
Gear ShiftF-N-R
Gear Ratio2.08 (27/13)
Gear Oil Capacity0.250 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height440 mm (17.3 in)
