E60HWHDL
44.1 kW (60 ps)
HKD $45,200

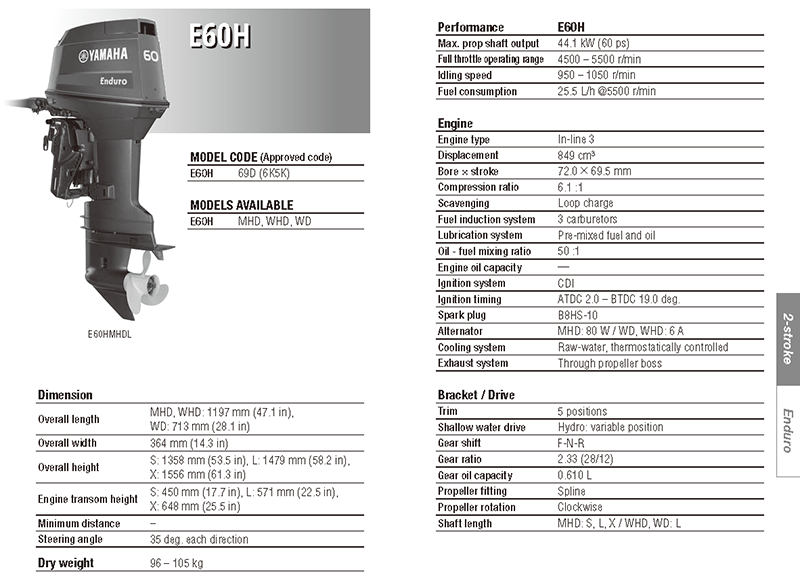

Performance
Max.prop Shaft Output44.1 kW (60 ps)
Full Throttle Operating Range 4500 – 5500 r/min
Idling Speed950 – 1050 r/min
Fuel Consumption25.5 L/h @5500 r/min

Engine
Engine TypeIn-line 3
Displacement849 cm³
Bore X Stroke72.0 × 69.5 mm
Compression Ratio6.1 :1
Starting EnrichmentManual choke
ScavengingLoop charge
Fuel Induction System3 carburetors
Oil fuel mixing ratio50 :1
Lubrication SystemPre-mixed fuel and oil
Ignition SystemCDI
Ignition TimingATDC 2.0 – BTDC 19.0 deg.
Spark PlugB8HS-10
Alternator6 A
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemThrough propeller boss

Bracket / Drive
Trim5 positions
Shallow Water DriveHydro: variable position
Steering Angle35 deg. each direction
Gear ShiftF-N-R
Gear Ratio2.33 (28/12)
Gear Oil Capacity0.610 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height 571 mm (22.5 in)
