NMAX ABS
11.1 kW / 8,000 rpm
HKD $29,800


NMAX


This premium entry-level city scooter combines punchy performance and excellent economy with dynamic style and day-to-day practicality.


At a glance:

  • 13-inch wheels with 130-section rear tyre
  • Variable valve actuation for strong acceleration
  • ABS as standard with 230mm front and rear discs
  • Excellent fuel efficiency
  • Excellent stability and easy agility
  • Sporty aerodynamic bodywork
  • Generous underseat helmet storage space
  • Compact and sporty handling chassis
  • Spacious interior with plenty of legroom
  • EU4-compliant Blue Core engine

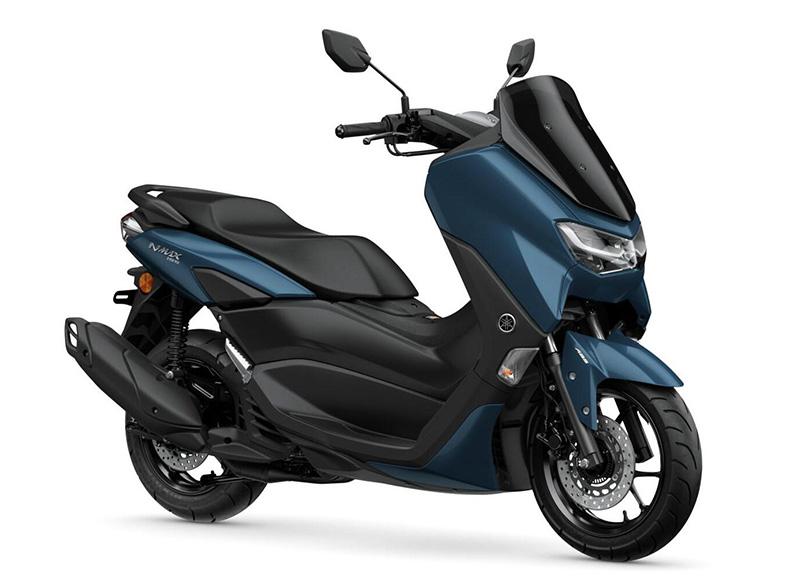

The picture above is for reference only. The real object should be considered as final.


Engine
Engine TypeLiquid Cooled, 4-stroke, SOHC, 4-valve
Displacement155 c.c.
Bore x Stroke58.0m x 58.7mm
Compression Ratio10.5:1
Maximum Power11.1 kW / 8,000 rpm
Maximum Torque14.4 Nm / 6,000 r/min
Lubrication SystemForce-feed lubrication, Wet sump
Clutch Type Dry, centrifugal, Shoe
Fuel SystemFuel Injected
Ignition System TCI (Transistor Controlled Ignition)
Starter SystemElectric
Transmission SystemV-Belt Automatic

Chassis
Front Suspension SystemTelescopic
Rear Suspension SystemUnit swing
Front BrakeSingle Disc Brake (ABS)
Rear BrakeSingle Disc Brake (ABS)
Front Tyre110/70-13
Rear Tyre 130/70-13
Headlight12V 6.4/6.0Wx1 (LED)
Tail LightLED

Dimensions
Overall Length 1,955 mm
Overall Width 740 mm
Overall Height 1,115 mm
Seat Height765 mm
Wheelbase1,350 mm
Minimum Ground Clearance 135 mm
Weight127kg
Fuel Tank Capacity6.6 Liters
