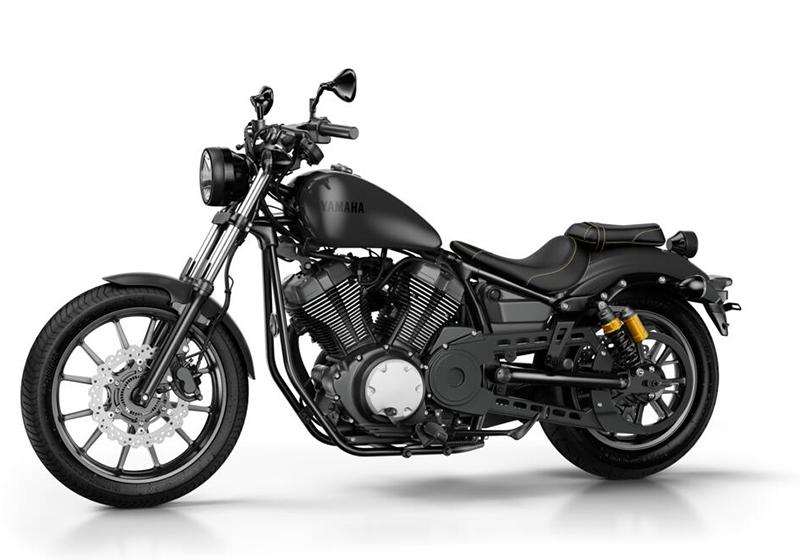

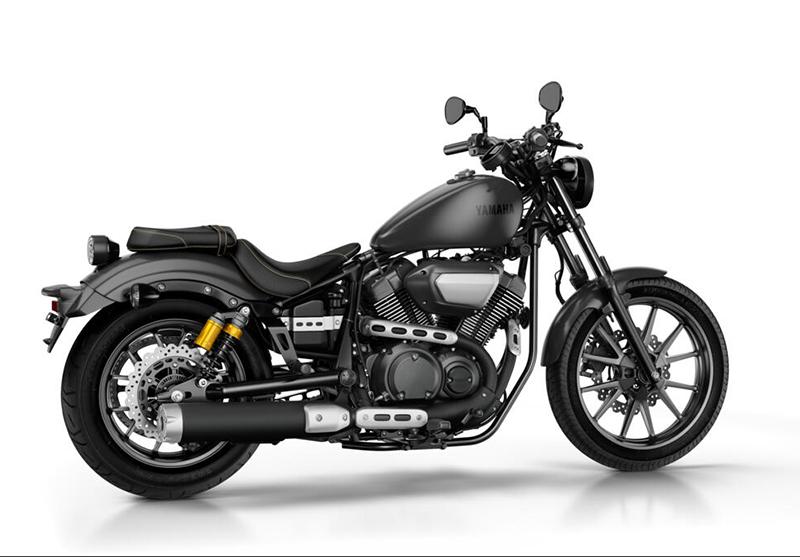

XV950R
54.3 ps / 5,500 rpm
54.3 ps / 5,500 rpm
HKD $103,800
- At a glance
- Air-cooled 60 ° V2 engine (OHC)
- Compact air filter housing for more torque
- More power in the lower and middle speed range
- 2-in-1 exhaust system encloses the engine
- Seat cover in suede look
- Double loop frame for easy and agile handling
- 12-spoke cast wheels, ABS standard
- 298 mm large brake discs in wave design, floating front mounted
- Struts with reservoir and adjustable damping
- 13 liter tank in drop form with stripes
- Some illustrations do not comply with the German specification
- 12.2 liter tank in drop form with stripes
The picture above is for reference only. The real
object should be considered as final.
| Engine | |
| Engine Type | 2-cylinder, 4-stroke, air-cooled, V, OHC, 4 valves |
| Displacement | 942 c.c. |
| Bore x Stroke | 85,0 mm x 83,0 mm |
| Compression Ratio | 9 : 1 |
| Maximum Power | 54.3 ps / 5,500 rpm |
| Maximum Torque | 8.1 mkp / 3,000 rpm |
| Lubrication System | wet sump |
| Clutch Type | Oil bath, multiple slices |
| Fuel System | Electronic fuel injection |
| Ignition System | Transistor |
| Starter System | Electrical |
| Transmission System | Sequential gearbox, 5-speed |
| Chassis | |
| Front Suspension System | Telescopic fork, Ø 41 mm telescopic fork |
| Front Travel | 135 mm |
| Rear Suspension System | Swingarm |
| Front Brake | 1 disc, Ø 298 mm |
| Rear Brake | 1 disc, Ø 298 mm |
| Front Tyre | 100/90 19 M / C (57H) |
| Rear Tyre | 150/80 R16 M / C (71H) |
| Dimensions | |
| Overall Length | 2,290 mm |
| Overall Width | 830 mm |
| Overall Height | 1,120 mm |
| Seat Height | 690 mm |
| Wheelbase | 1,570 mm |
| Minimum Ground Clearance | 130 mm |
| Weight | 252 kg |
| Fuel Tank Capacity | 13 liters |
