MT-09 Tracer
84.6 kW (115 ps) / 10,000 rpm
HKD $116,800


MT-09 Tracer


Riding is a way of life that enables you to fully absorb the world around you and see new places from a different perspective – wherever you go.


At a glance:

  • Ergonomic chassis and effective wind protection
  • Integrated side case mounts
  • Long swingarm for stability with agility
  • Compact, torque-rich 847cc 3-cylinder engine
  • A&S clutch, D-MODE, TCS, ABS
  • Large capacity long-range 18-litre fuel tank
  • Main stand fitted as standard equipment
  • Slim and lightweight CF die-cast aluminium frame
  • Dynamically styled passenger grab bar
  • Large sport touring screen, one hand adjustment

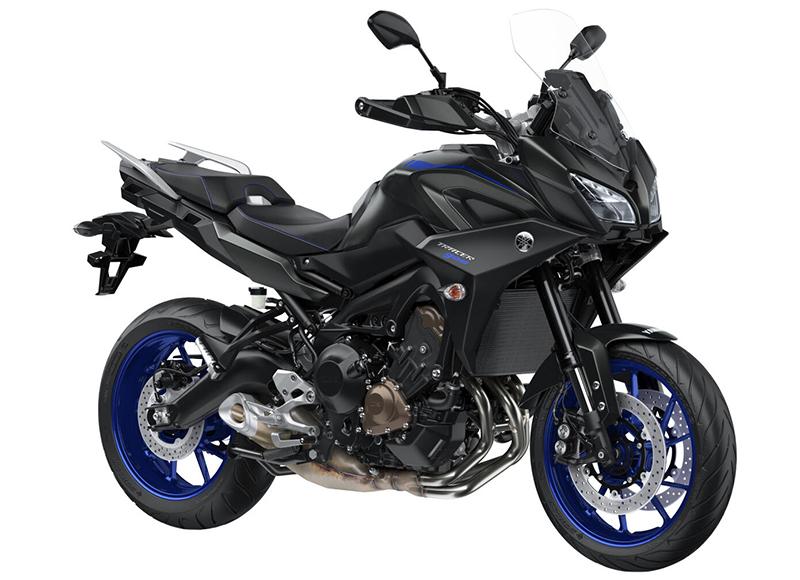

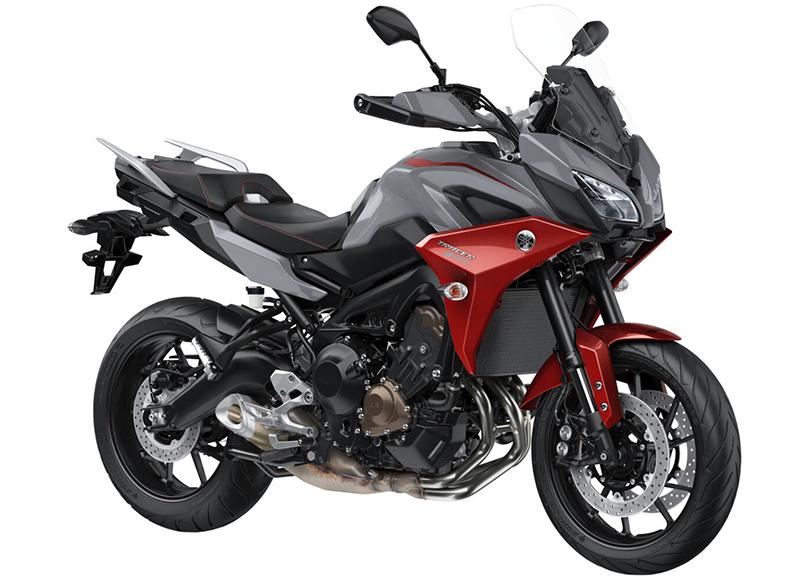

The picture above is for reference only. The real object should be considered as final.


Engine
Engine Type3-cylinder, 4-stroke, liquid-cooled, DOHC, 4-valves
Displacement847 c.c.
Bore x Stroke78.0 mm x 59.1 mm
Compression Ratio11.5 : 1
Maximum Power84.6 kW (115 ps) / 10,000 rpm
Maximum Torque87.5 Nm (8.9 kg-m) @ 8,500 rpm
Lubrication SystemWet sump
Clutch TypeWet, Multiple Disc
Fuel SystemFuel Injection
Ignition SystemTCI
Starter SystemElectric
Transmission SystemConstant Mesh, 6-speed
Final DriveChain

Chassis
Front Suspension SystemTelescopic forks
Front Travel137 mm
Rear Suspension SystemSwingarm, (Link type suspension)
Rear Travel142 mm
Front BrakeHydraulic dual disc, 298 mm
Rear BrakeHydraulic single disc, 245 mm
Front Tyre120/70ZR17M/C (58W)
Rear Tyre180/55ZR17M/C (73W)

Dimensions
Overall Length2,160 mm
Overall Width850 mm
Overall Height1,375 mm (max. 1,430 mm)
Seat Height850 mm (max. 865 mm)
Wheelbase1,500 mm
Minimum Ground Clearance135 mm
Weight214 kg
Fuel Tank Capacity18 L
