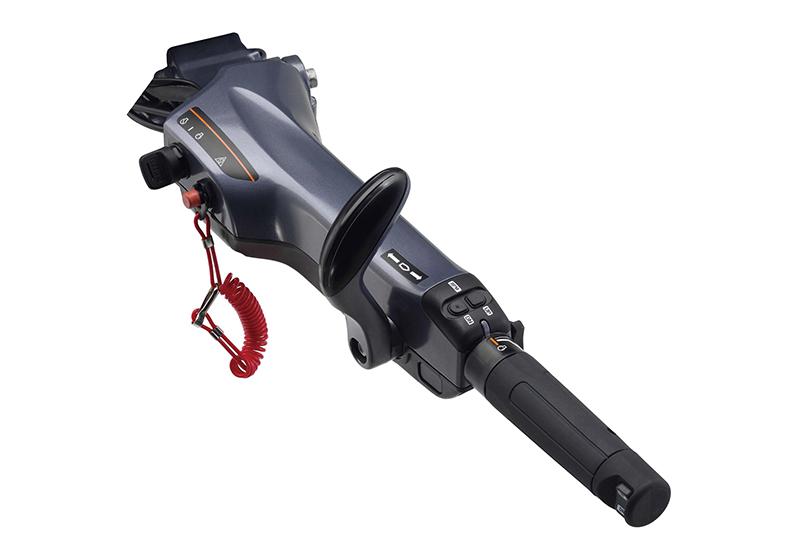

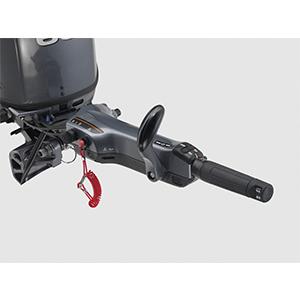

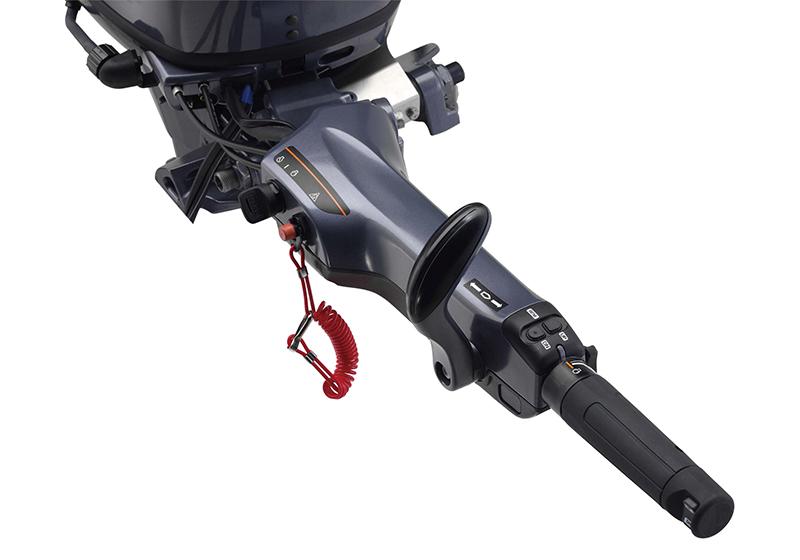

6X4 Multi-Function Tiller Handle

Yamaha prepares various multi-function tiller handle kits for 4 stroke F20 (6HY, PT spec), F25 (6FM, PTT spec) to F130 and 2 stroke 40 to 90 outboard motors.

These are all-in-one concept similar to 703 remote control box, offering: Engine ignition switch, Emergency stop switch, PTT switch, Neutral switch, Throttle friction adjuster, Shift lever, Throttle control grip, Variable troll RPM switch, LED warning indicators (only Europe & Australia/ New Zealand), and Warning buzzer.

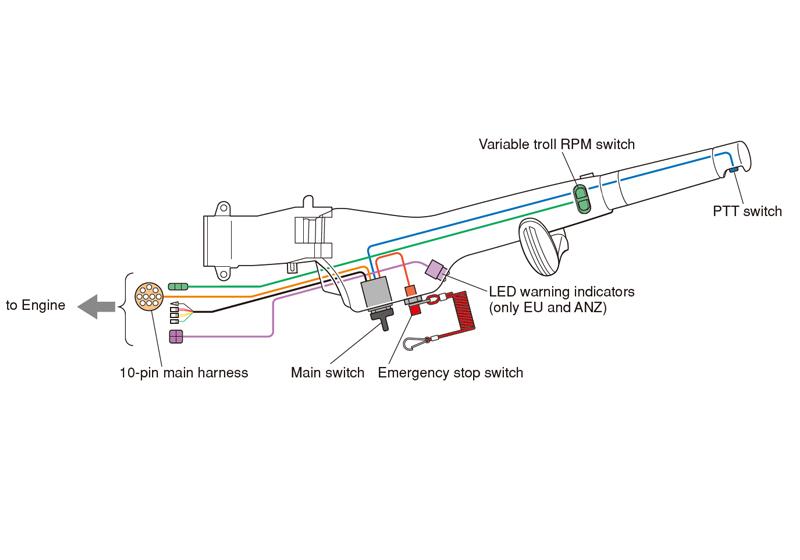

The 10-pin main harness in the handle will allow an easy connection of the electrical system to the engine.
