TMAX 560
35.0 kW / 7,500 rpm
HKD $119,800

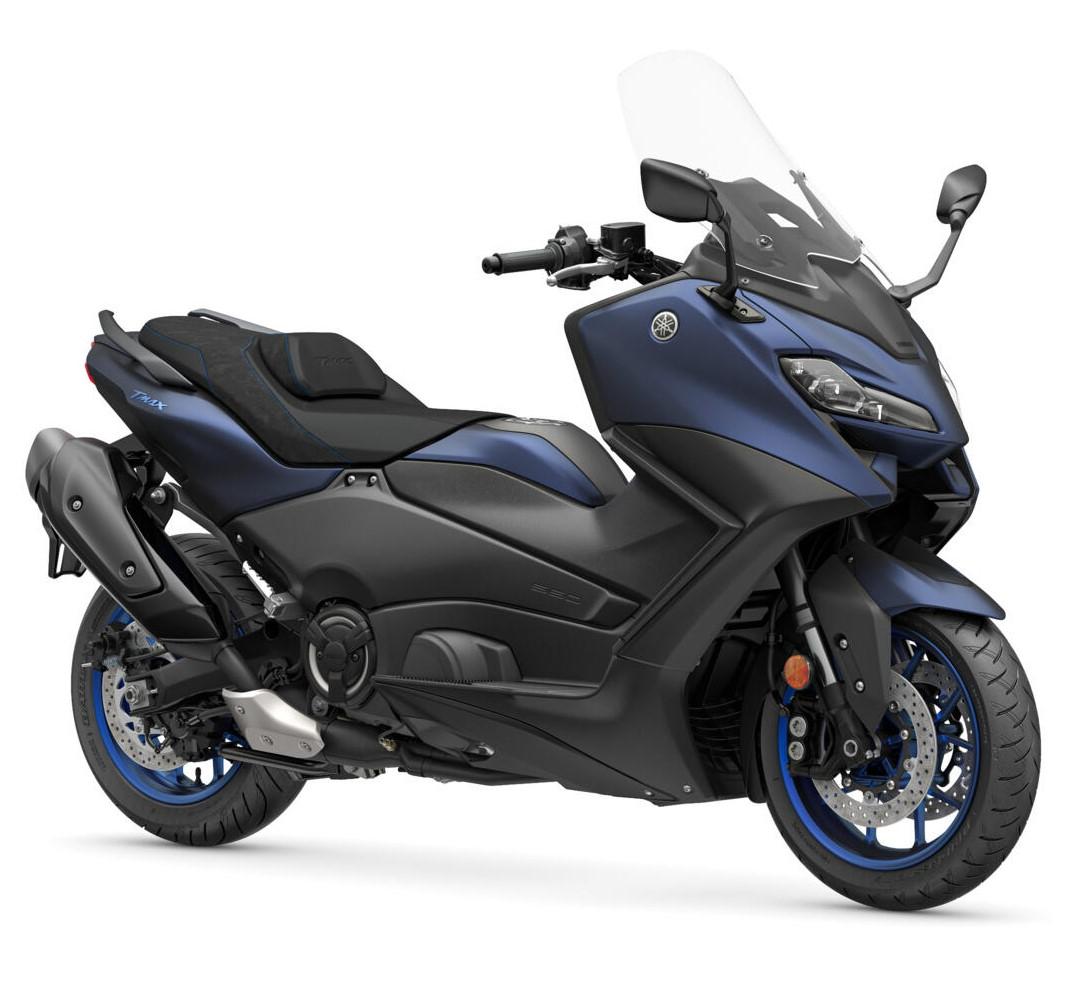

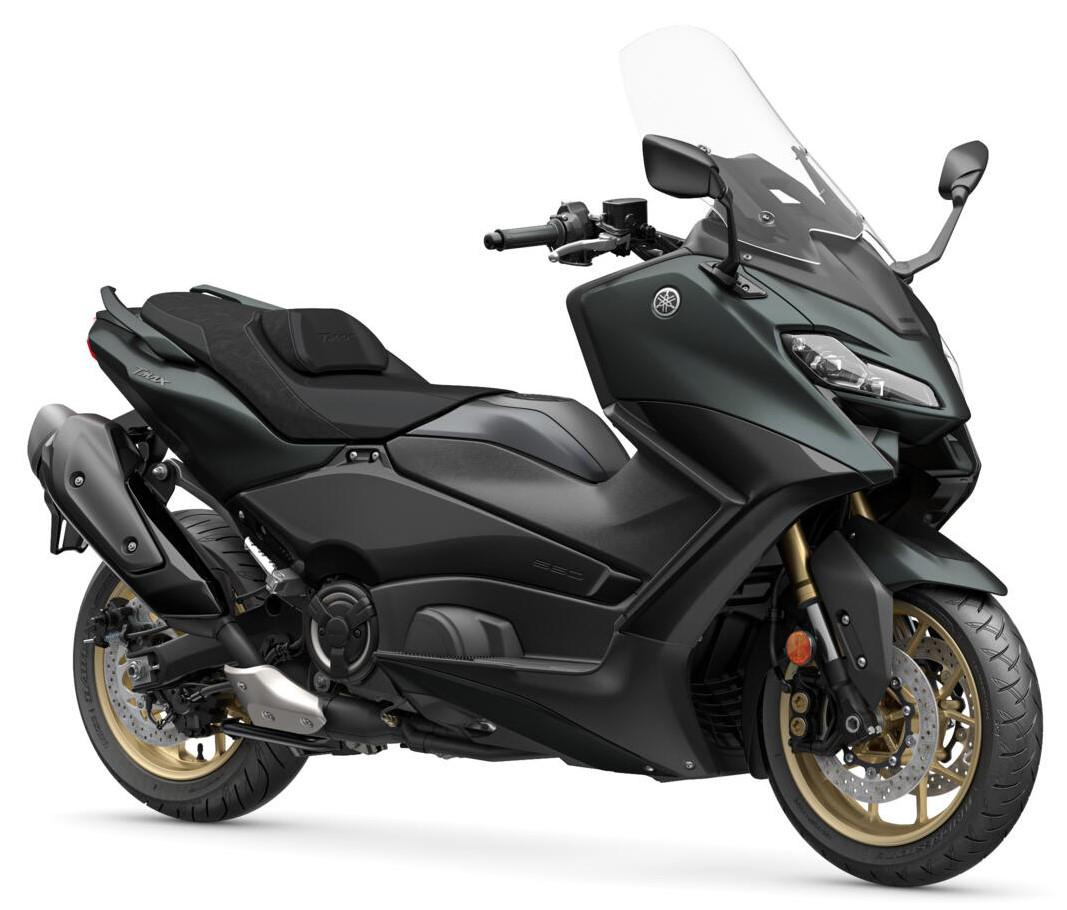

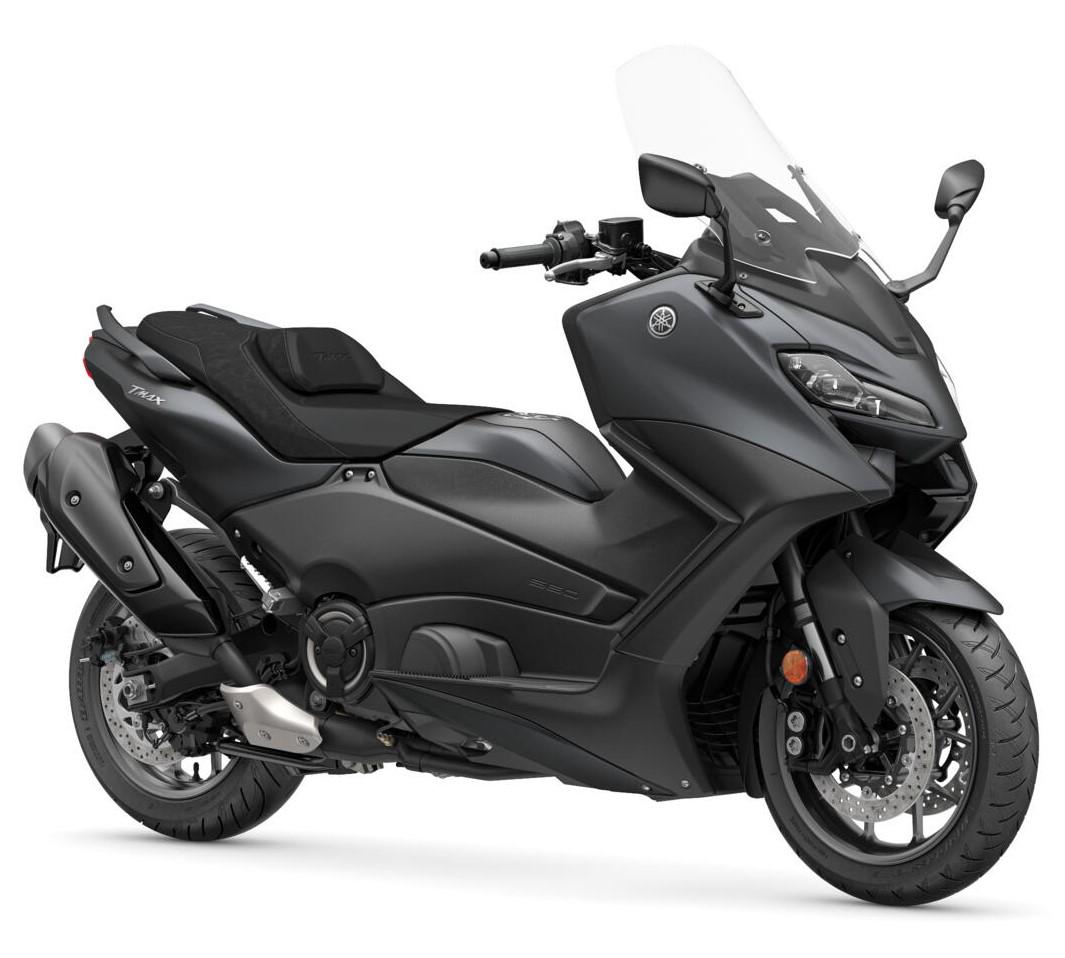

The picture above is for reference only. The real object should be considered as final.


Engine
Engine Typeliquid-cooled;4-stroke, 4-valves, DOHC, Parallel twin-cylinder
Displacement562 c.c.
Bore x Stroke70.0 mm x 73.0 mm
Compression Ratio10.9 : 1
Maximum Power35.0 kW / 7,500 rpm
Maximum Torque55.7 Nm @ 5,250 rpm
Lubrication SystemDry sump
Fuel SystemFuel Injection
Ignition SystemTCI
Starter SystemElectric
Transmission SystemV-Belt Automatic

Chassis
Front Suspension SystemTelescopic forks
Front Travel120 mm
Rear Suspension SystemSwingarm
Rear Travel117 mm
Front BrakeHydraulic dual disc, Ø 267 mm
Rear BrakeHydraulic single disc, Ø 282 mm
Front Tyre120/70 R15 M/C 56H Tubeless
Rear Tyre160/60 R15 M/C 67H Tubeless
HeadlightLED
Tail LightLED
Turn Signal Light / Position LightBulb (21.0 W x 2)

Dimensions
Overall Length2,200 mm
Overall Width765 mm
Overall Height1,420-1,475 mm (adjustable windscreen)
Seat Height800 mm
Wheelbase1,575 mm
Minimum Ground Clearance125 mm
Weight 218 kg
Fuel Tank Capacity15.0 L
