TMAX TECH MAX
35.0 kW / 7,500 rpm
HKD $123,800


The new TMAX Tech MAX is Yamaha’s highest specification sport scooter that is designed to give you the most dynamic, exciting and refined ride that you will ever experience. Look at all the advanced technology that comes as standard and you’ll see that nothing else comes close.

At a glance

  • Monotone TFT instrument panel
  • Traction Control System & D-MODE
  • Smart Key operation
  • Improved ground accessibility
  • Lightweight aluminium frame
  • Heated grips and seat
  • Cruise control

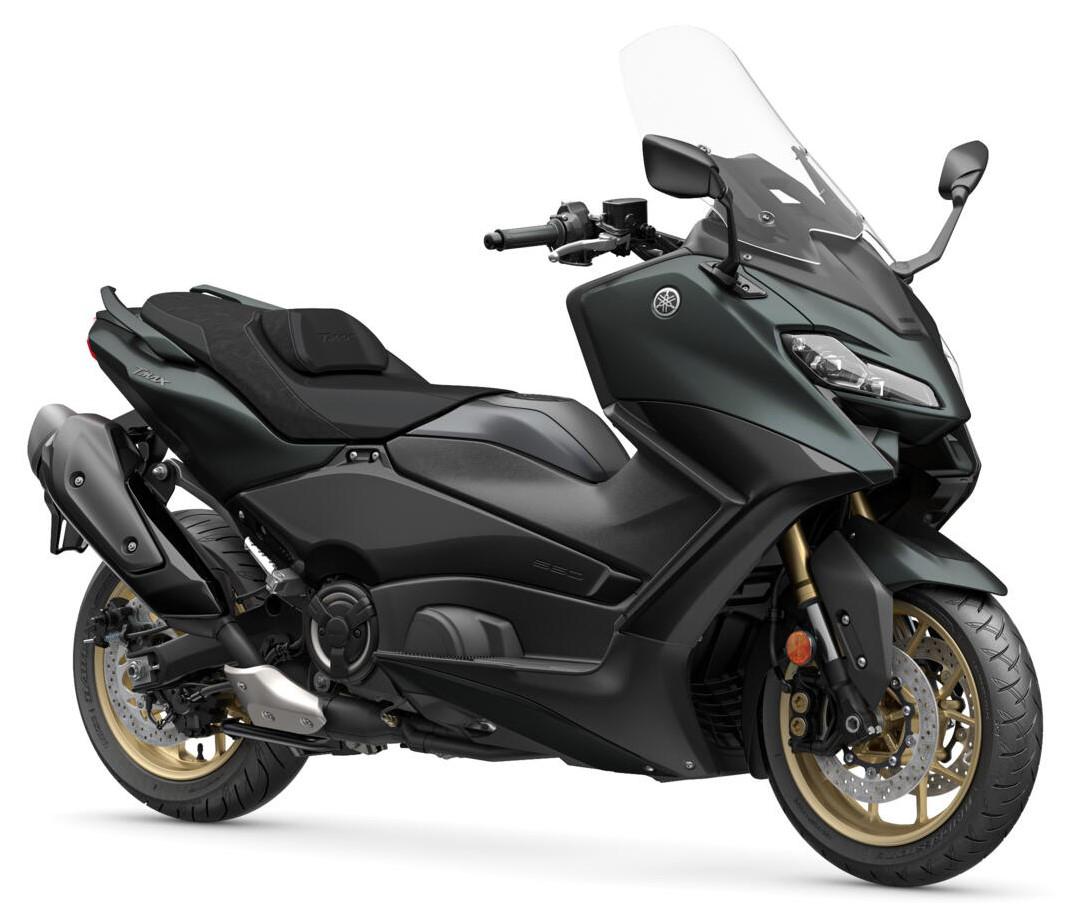

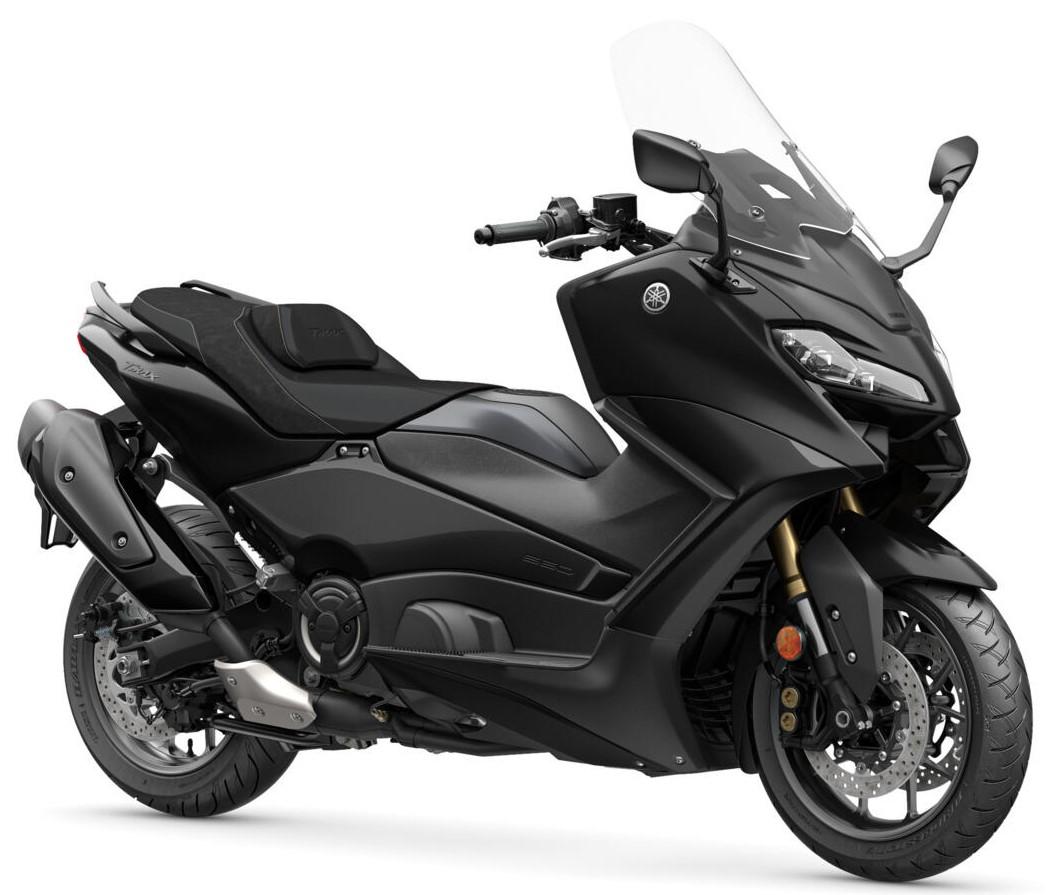

The picture above is for reference only. The real object should be considered as final.


Engine
Engine TypeForward-inclined parallel 2-cylinder, liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement562 c.c.
Bore x Stroke70.0 mm x 73.0 mm
Compression Ratio10.9 : 1
Maximum Power35.0 kW / 7,500 rpm
Maximum Torque55.7 Nm @ 5,250 rpm
Lubrication SystemDry sump
Fuel SystemFuel Injection
Ignition SystemTCI
Starter SystemElectric
Transmission SystemV-Belt Automatic

Chassis
Front Suspension SystemTelescopic forks
Front Travel120 mm
Rear Suspension SystemSwingarm
Rear Travel117 mm
Front BrakeHydraulic dual disc
Rear BrakeHydraulic single disc
Front Tyre120/70R 15M/C 56H Tubeless
Rear Tyre160/60R 15M/C 67H Tubeless
HeadlightLED
Tail LightLED
Turn Signal Light / Position LightFront Bulb (12V PY21W) / Rear LED

Dimensions
Overall Length2,200 mm
Overall Width765 mm
Overall Height1,420-1,555 mm (adjustable windscreen)
Seat Height800 mm
Wheelbase1,575 mm
Minimum Ground Clearance125 mm
Weight220 kg
Fuel Tank Capacity15 L
