F20CMHS
14.7 kW (20 ps)
HKD $26,950

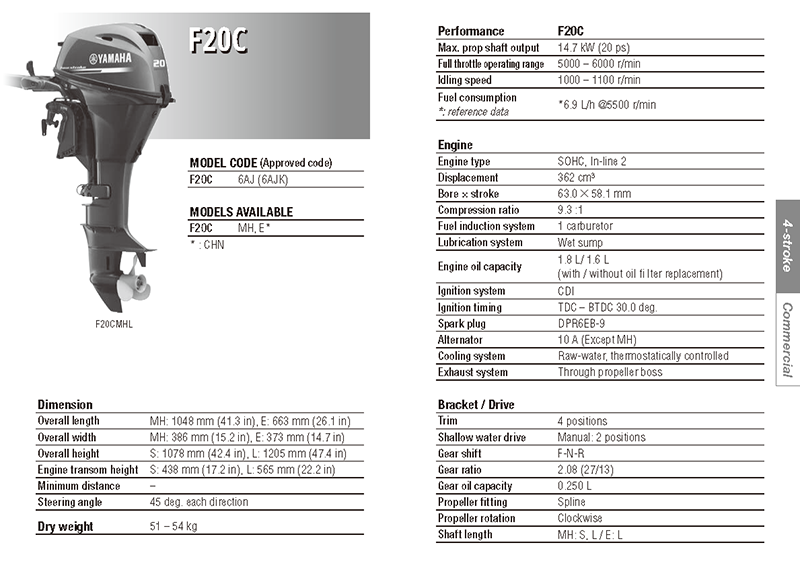

Performance
Max.prop Shaft Output14.7 kW (20 ps)
Full Throttle Operating Range5000 – 6000 r/min
Idling Speed1000 – 1100 r/min
Fuel Consumption6.9 L/h @5500 r/min

Engine
Engine TypeSOHC, In-line 2
Displacement362 cm³
Bore X Stroke63.0× 58.1 mm
Compression Ratio9.3 :1
Starting EnrichmentPrime start
Fuel Induction System1 carburetor
Lubrication SystemWet sump
Engine Oil Capacity1.8 L/ 1.6 L (with / without oil filter replacement)
Ignition SystemCDI
Ignition TimingTDC – BTDC 30.0 deg
Spark PlugDPR6EB-9
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemThrough propeller boss

Bracket / Drive
Trim4 positions
Shallow Water DriveManual: 2 positions
Steering AngleManual: 45 deg. each direction
Gear ShiftF-N-R
Gear Ratio2.08 (27/13)
Gear Oil Capacity0.250 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height438 mm (17.2 inch)
