XMAX 300
28 ps / 7,250 rpm
HKD $59,800

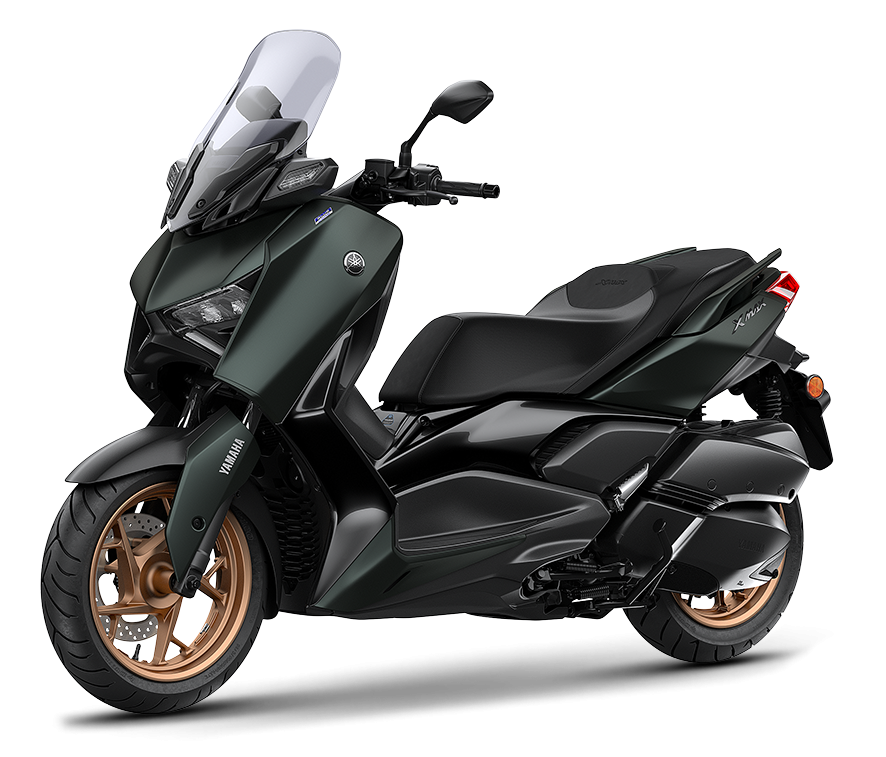

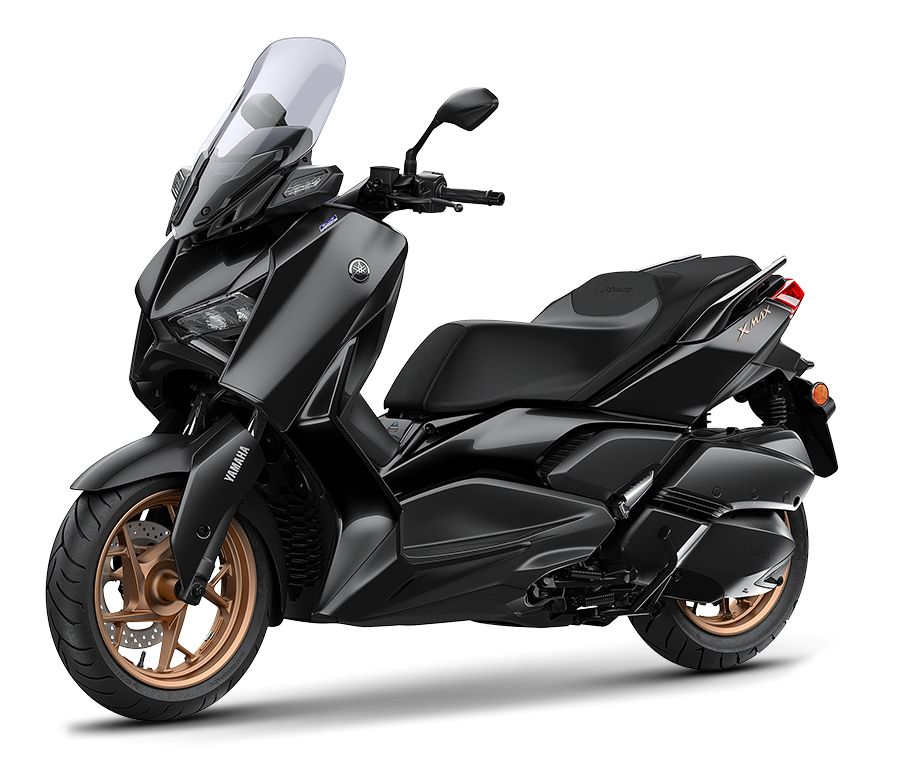

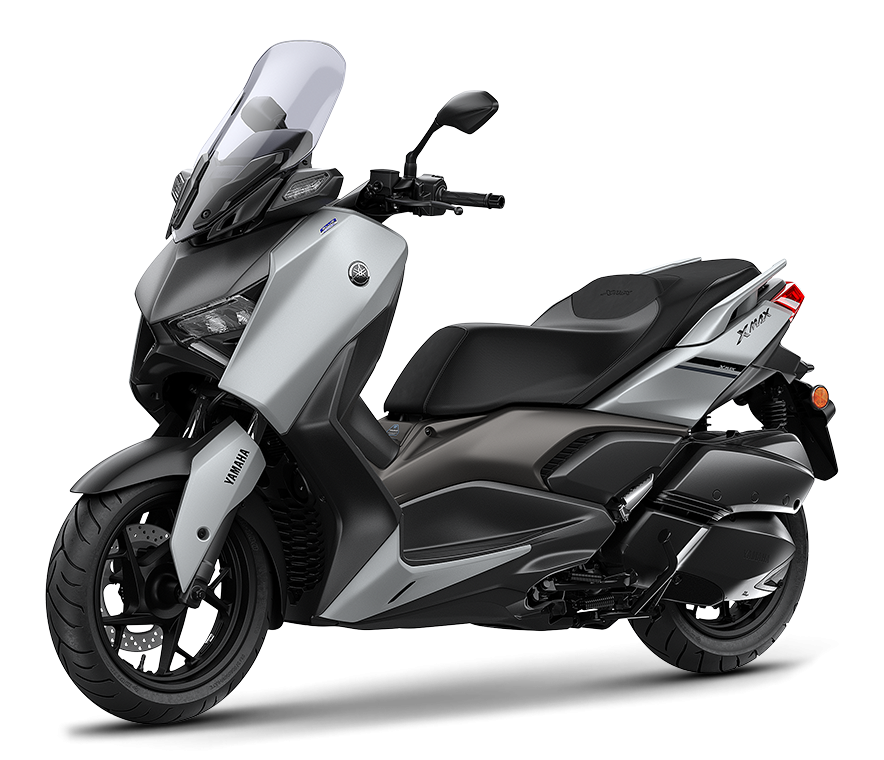

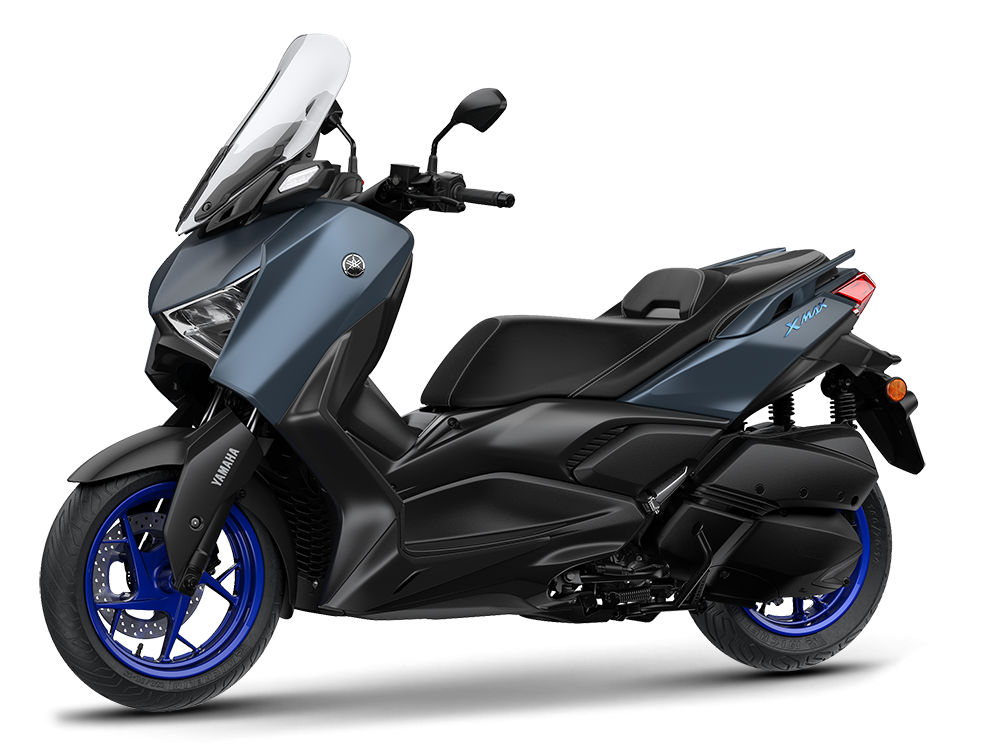

The picture above is for reference only. The real object should be considered as final.


Engine
Engine TypeLiquid cooled, 4-stroke, SOHC, 4-valves, single cylinder
Displacement300 c.c.
Bore x Stroke70.0 X 75.9 mm
Compression Ratio10.9 : 1
Maximum Power28 ps / 7,250 rpm
Maximum Torque3.0kg-m / 5,750rpm
Lubrication SystemWet sump
Clutch TypeDry,centrifugal,shoe
Ignition SystemTCI
Starter SystemElectric starter
Transmission SystemV-belt automatic

Chassis
Front Suspension SystemTelescopic fork
Rear Suspension SystemUnit swing
Front BrakeSingle disc, Ø267mm
Rear BrakeSingle disc, Ø245mm
Front Tyre120/70-15
Rear Tyre140/70-14
Headlight LED (5.8W x 2)
Tail LightLED
Turn Signal Light / Position Light12V 10W/LED

Dimensions
Overall Length2185mm
Overall Width775mm
Overall Height1415/1465mm
Seat Height795 mm, Double seats
Wheelbase1,540 mm
Weight179 kg
Fuel Tank Capacity13 L
