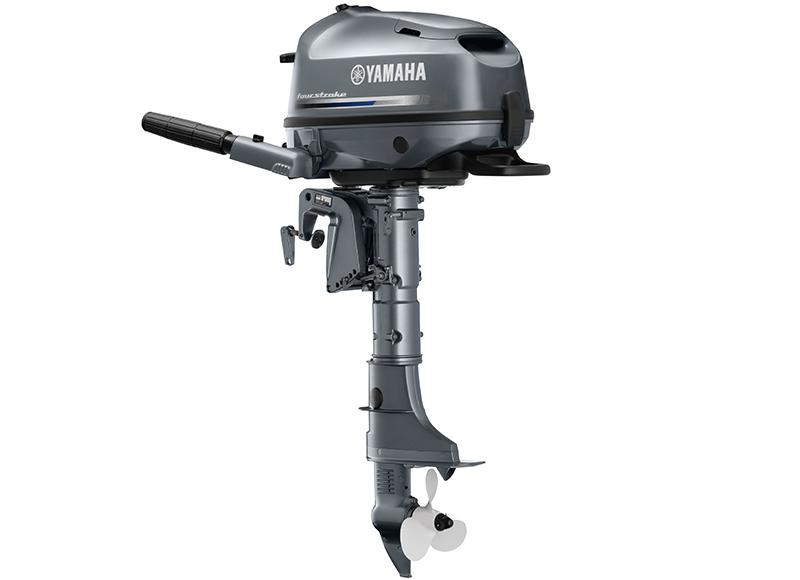

F6CMHL
4.4 kW (6 ps)
HKD $17,000

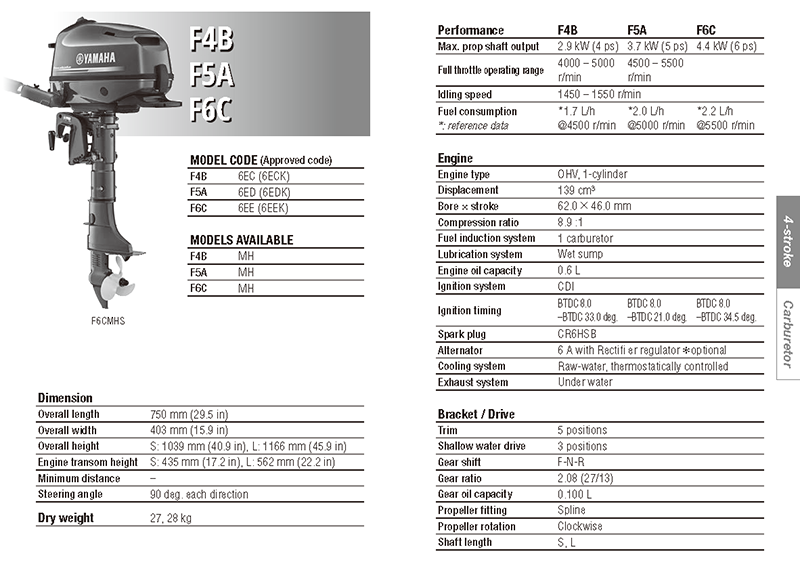

Performance
Max.prop Shaft Output4.4 kW (6 ps)
Full Throttle Operating Range4500 – 5500 r/min
Idling Speed1450 – 1550 r/min
Fuel Consumption2.2 L/h @5500 r/min

Engine
Engine TypeOHV, 1-cylinder
Displacement139 cm³
Bore X Stroke62.0 × 46.0 mm
Compression Ratio8.9 :1
Starting EnrichmentManual choke
Fuel Induction System1 carburetor
Lubrication SystemWet sump
Engine Oil Capacity0.6 L
Ignition SystemCDI
Ignition TimingBTDC 8.0 – BTDC 32.0 deg.
Spark PlugCR6HSB
Alternator6 A with Rectifier regulator *optional
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemUnder water

Bracket / Drive
Trim5 positions
Shallow Water Drive3 positions
Steering Angle90 deg. each direction
Gear ShiftF-N-R
Gear Ratio2.08 (27/13)
Gear Oil Capacity0.100 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height562 mm (22.2 inch)
