30HMHS
22.1 kW (30 ps)
HKD $19,050

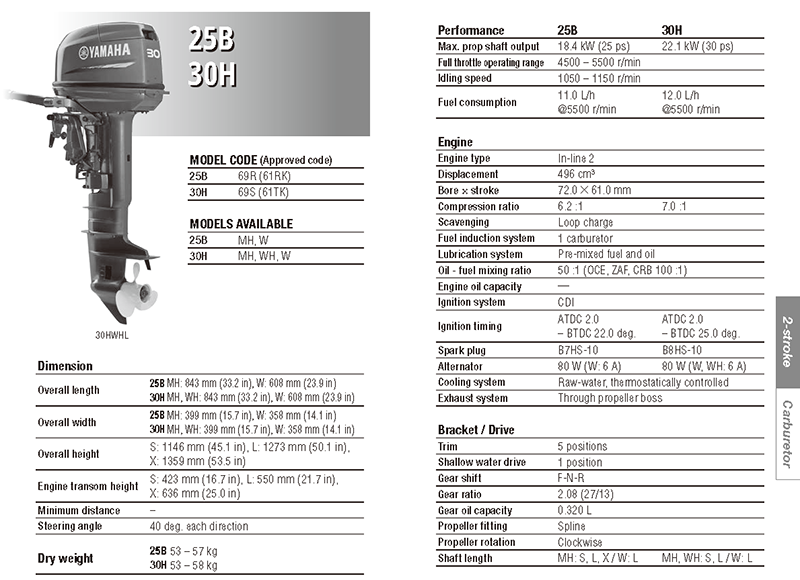

Performance
Max.prop Shaft Output22.1 kW (30 ps)
Full Throttle Operating Range4500 – 5500 r/min
Idling Speed1050 – 1150 r/min
Fuel Consumption12.0 L/h @5500 r/min

Engine
Engine TypeIn-line 2
Displacement496 cm³
Bore X Stroke72.0× 61.0 mm
Compression Ratio7.0 :1
Starting EnrichmentManual choke
Fuel Induction System1 carburetor
Lubrication SystemPre-mixed fuel and oil
Ignition SystemCDI
Ignition TimingATDC 2.0 – BTDC 25.0 deg
Spark PlugB8HS-10
Alternator80 W (W, WH: 6 A)
Cooling SystemRaw-water, thermostatically controlled
Exhaust SystemThrough propeller boss

Bracket / Drive
Trim5 positions
Shallow Water Drive1 positions
Steering Angle40 deg. each direction
Gear ShiftF-N-R
Gear Ratio2.08 (27/13)
Gear Oil Capacity0.320 L
Propeller FittingSpline
Propeller RotationClockwise
Engine Transom Height423 mm (16.7 in)
